**Show Us Your Installs!!!**

[Spudnik]

Right chaps,

Due to a few unavoidable issues, we have lost the original thread and pics etc.

Sorry about that!!!

So, if you want to re-upload your pics then great, if not, give us something new!


Cheers!!



[SafetyFirst]

From a commercial job i worked on with a small gang of sparks couple year back. Bottom tray had power including all sub mains and t&e power & lighting circuits. Middle rack all Data cat 5 cables and top was for fire/security low voltage cables. This was done to the entire perimeter of building and interlinked to at places, Certain points like this was adjusted to allow heating and ventillation pipes and ductwork through. There must have been miles and miles of metal and then cable once that was laid on this fairly large scale job. There's not many of these sized jobs around my area now for sure!



[Superspark23]

I'd love to get my hands on some tray work, i really enjoyed doing that at college, and havent touched any since.



[part270579]

Big round of applause for the person responsible for 'loosing' this thread!!! Clap-CLAP!!

I have an album on here. I can post more photos if anyone wants to see more of what I turn out:

part270579's Album: Electrical

I would like to see the standard of installs raised across the board.

Well, here you go. Both of these bits of tray are one piece excluding the flange in No.2:



[Superspark23]

why do so many people use tie wraps? they can and do degrade from heat and light and eventually snap.



[part270579]

Well isn't it a good idea to use the right cable ties in the right conditions? No wonder yours snap lol:24:

What SuperSpark23 meant to say was "wow! Guys your installs are amazing and I think the cable tray above is just out of this world!!!:wub: Can I call you daddy??"

And another bit of tray, hand bent lol:



[Specialist]

Big round of applause for the person responsible for 'loosing' this thread!!! Clap-CLAP!!

I have an album on here. I can post more photos if anyone wants to see more of what I turn out:

part270579's Album: Electrical

I would like to see the standard of installs raised across the board.

Well, here you go. Both of these bits of tray are one piece excluding the flange in No.2:

Now that's what I call some serious artistry.



[part270579]

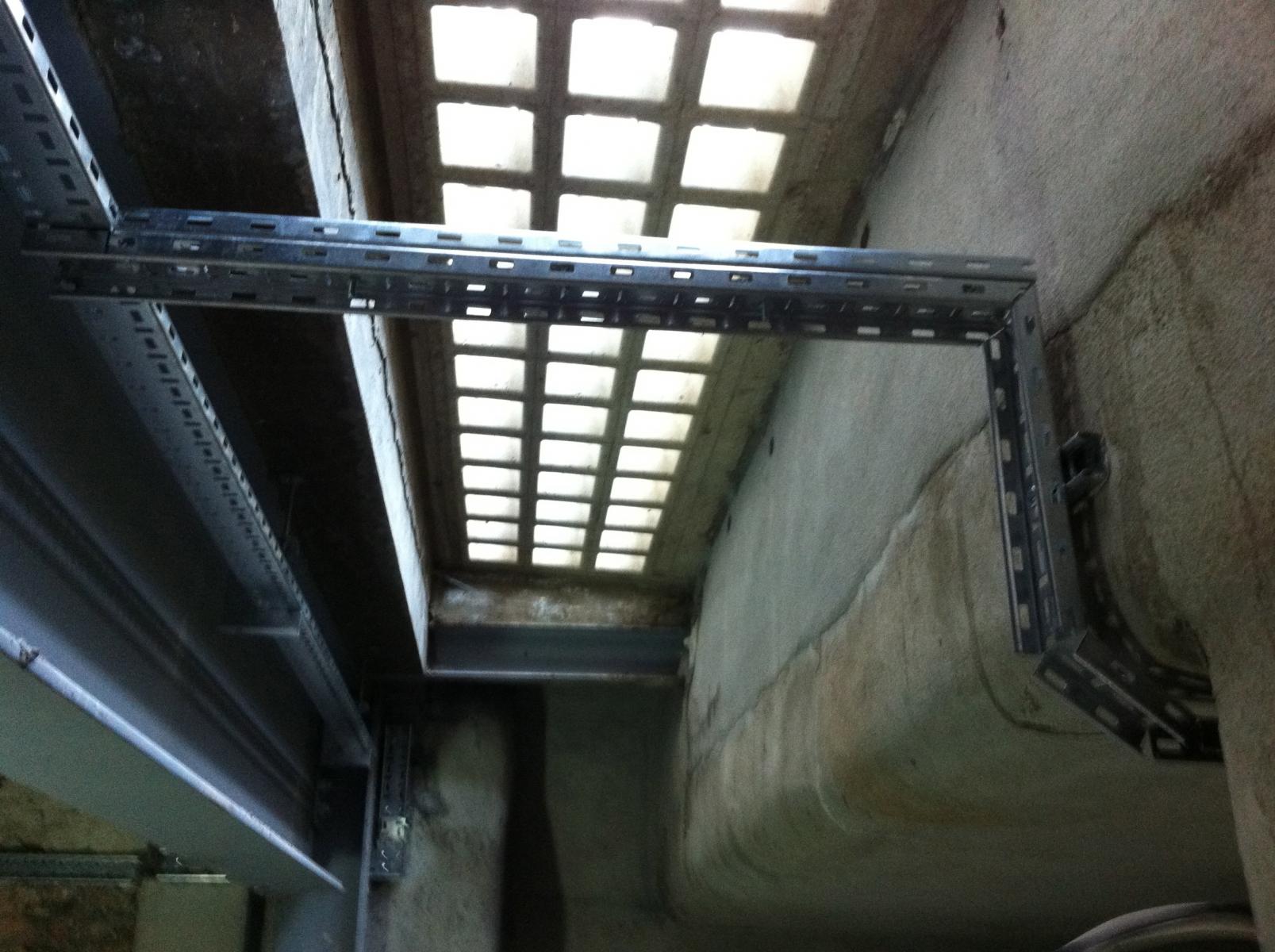

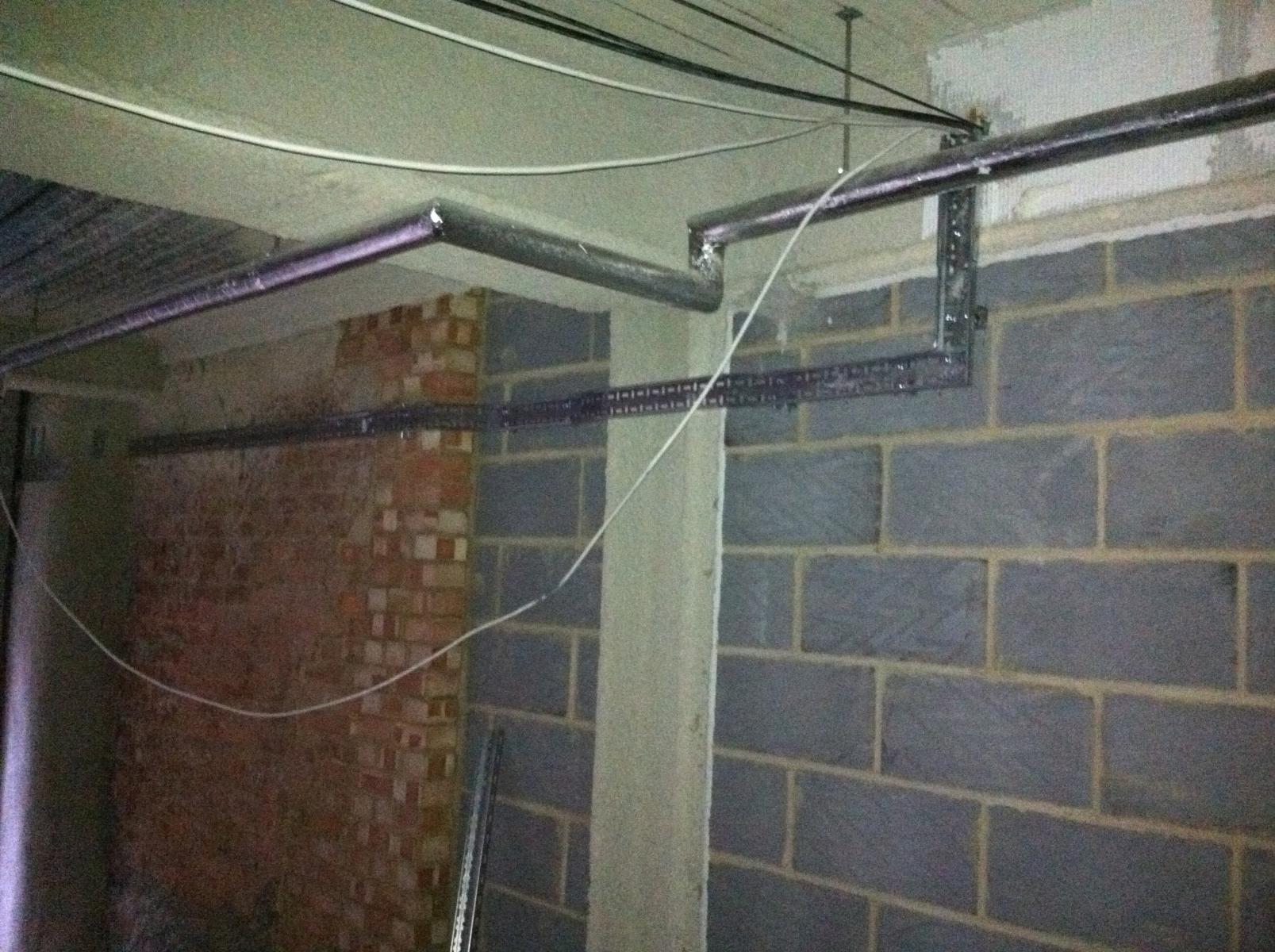

View attachment 8493View attachment 8494View attachment 8495View attachment 8496View attachment 8497View attachment 8498

Hey Banjo, your tray isn't to bad:20:

Do you want some advice? Gonna give it to you anyway lol.

Firstly, try and flange all of your joints. E.g. If you have two pieces of tray that are meeting at right angles, like a 'T' for instance, flange both sides. It's easier on the cables that way, and a well gusseted joint looks 100% more professional IMO.

Secondly, I think you need to be making the radius of your bends much bigger than they are. Same again, easier on the cable and the eye. One cut bends don't really cut it in my book. Remember, this isn't trunking and you want to remove as little metalwork as possible to keep the trays inherent strength.

You look like you have the makings of a good tray guy.

Keep it up.



[Banjo]

Hi mate,

when making my own bend, i always put a gusset in, this particular job we were a bit strapped for time and my boss was breathing down our neck lol. I love bit of metal work i'm only 20 years old but can smash most the spraks on my firm at metalwork . I like a lot of your work look very impressive mate top notch!!



[dubsy001]

I was called out to look at an swa that had been chopped through, only to find out that it was a 16mm twin and earth fed from a henley block with no lid. There had already been an electrician round previously that couldnt do the job at the time so left with out doing anything to this. This cupboard was in the kitchen and easily accessable to all residents of the house including children. What goes through electricians minds when they see something like this. Am i right in saying that im within my right to pull the main fuse on this property due to an unsafe installation. It was lucky that I had a single pole henley block in the van.



[acowx]

Ok

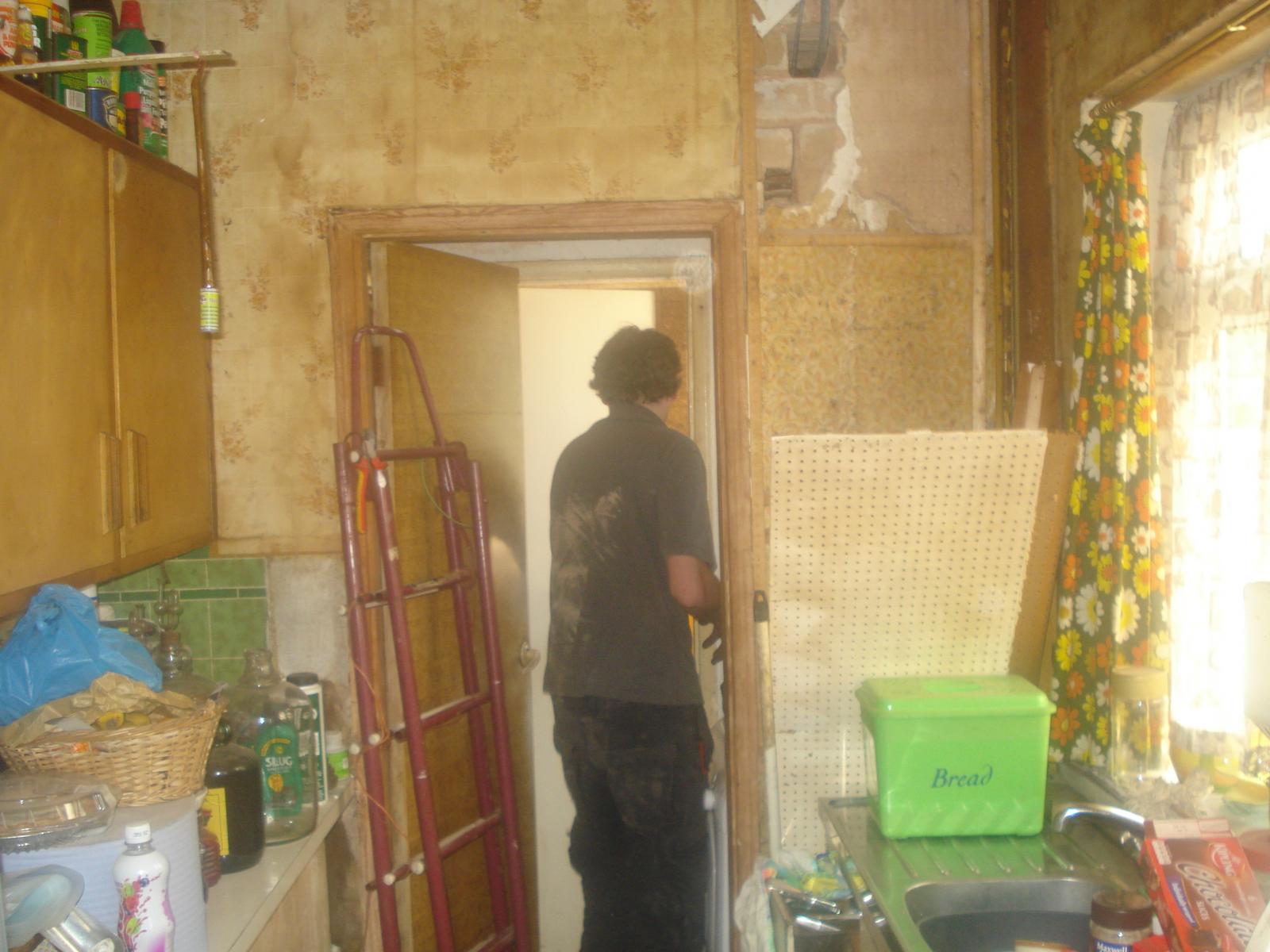

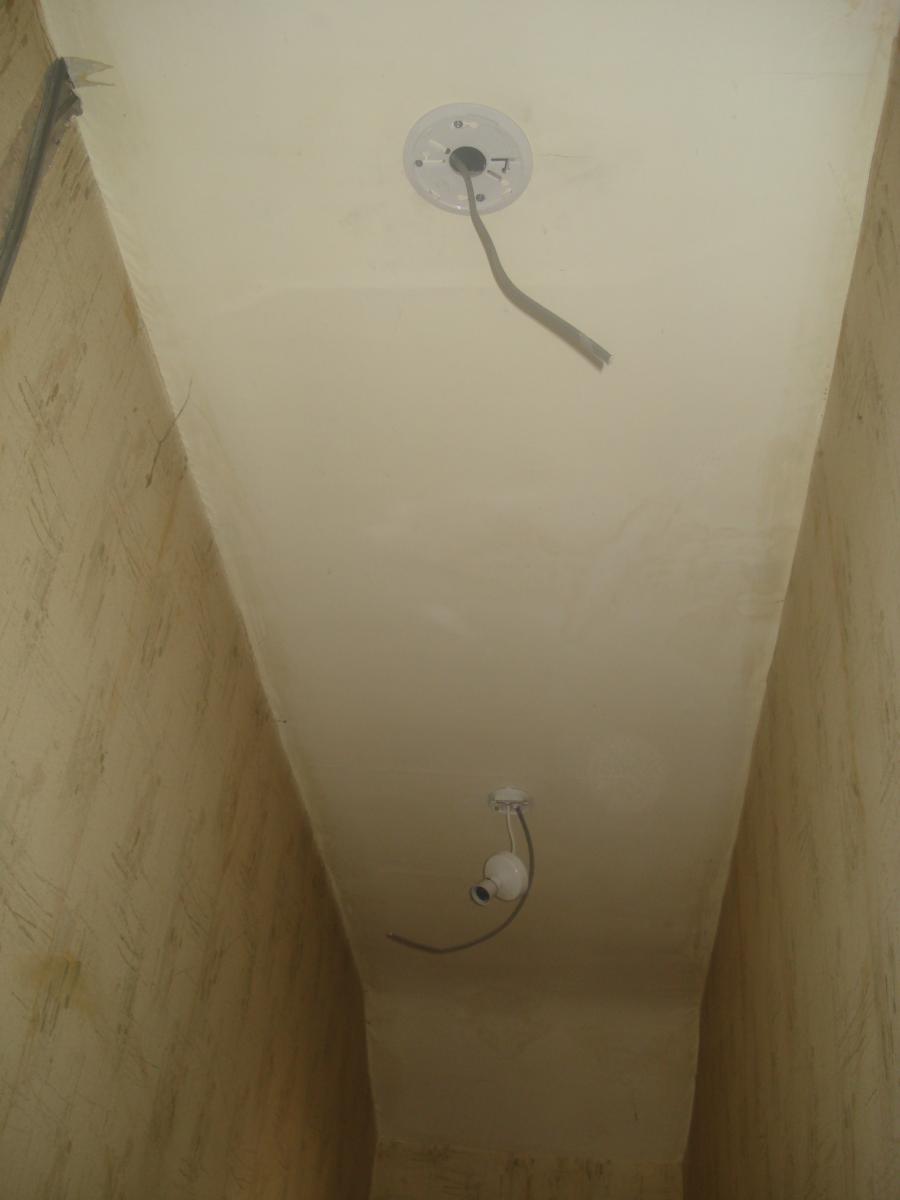

The first 5 pictures are a rewire we did, how nice was the person moving all of his crap out of the way.
Next is a shower board I put in.
Next 3 are a new board to protect some sockets and lighting, did tell them to have the whole thing changed but nah.

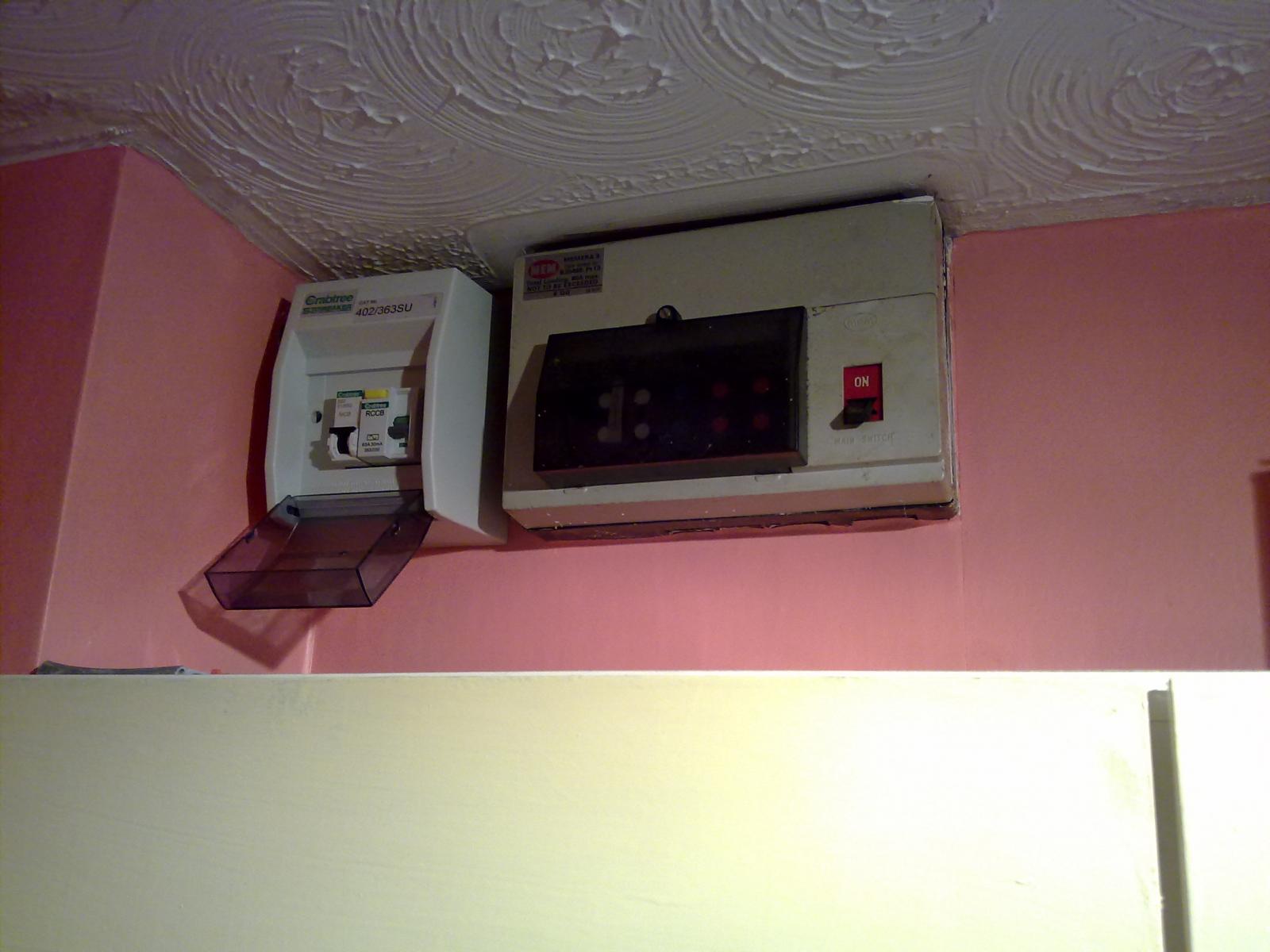

Next is a shower and a new cu.

Cheers
Ashley



[rob@etc]

This was done by the apprentice on a recent job, 4 x 2.5mm twin and earths he was proud of it!!



[johnboy6083]

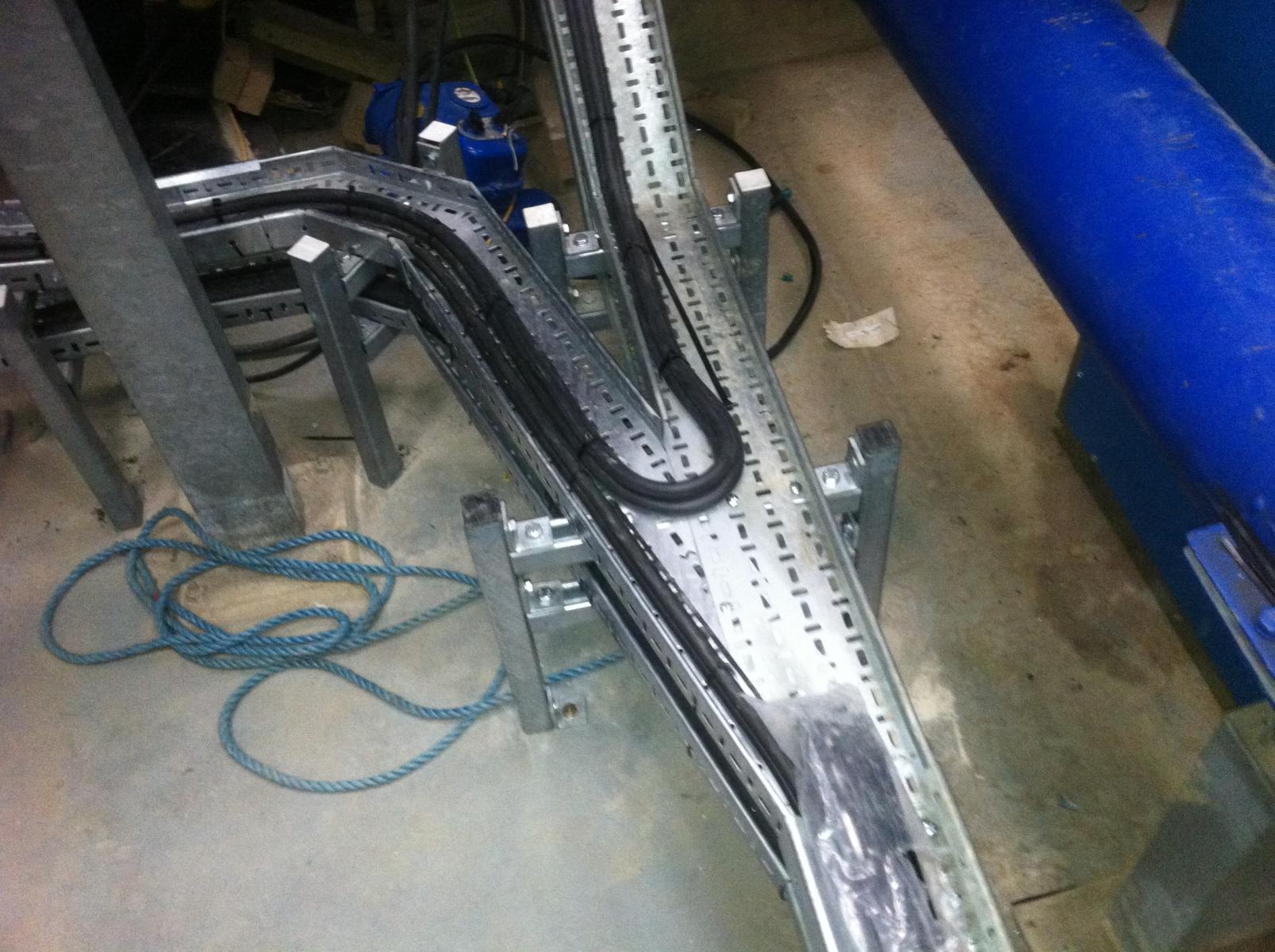

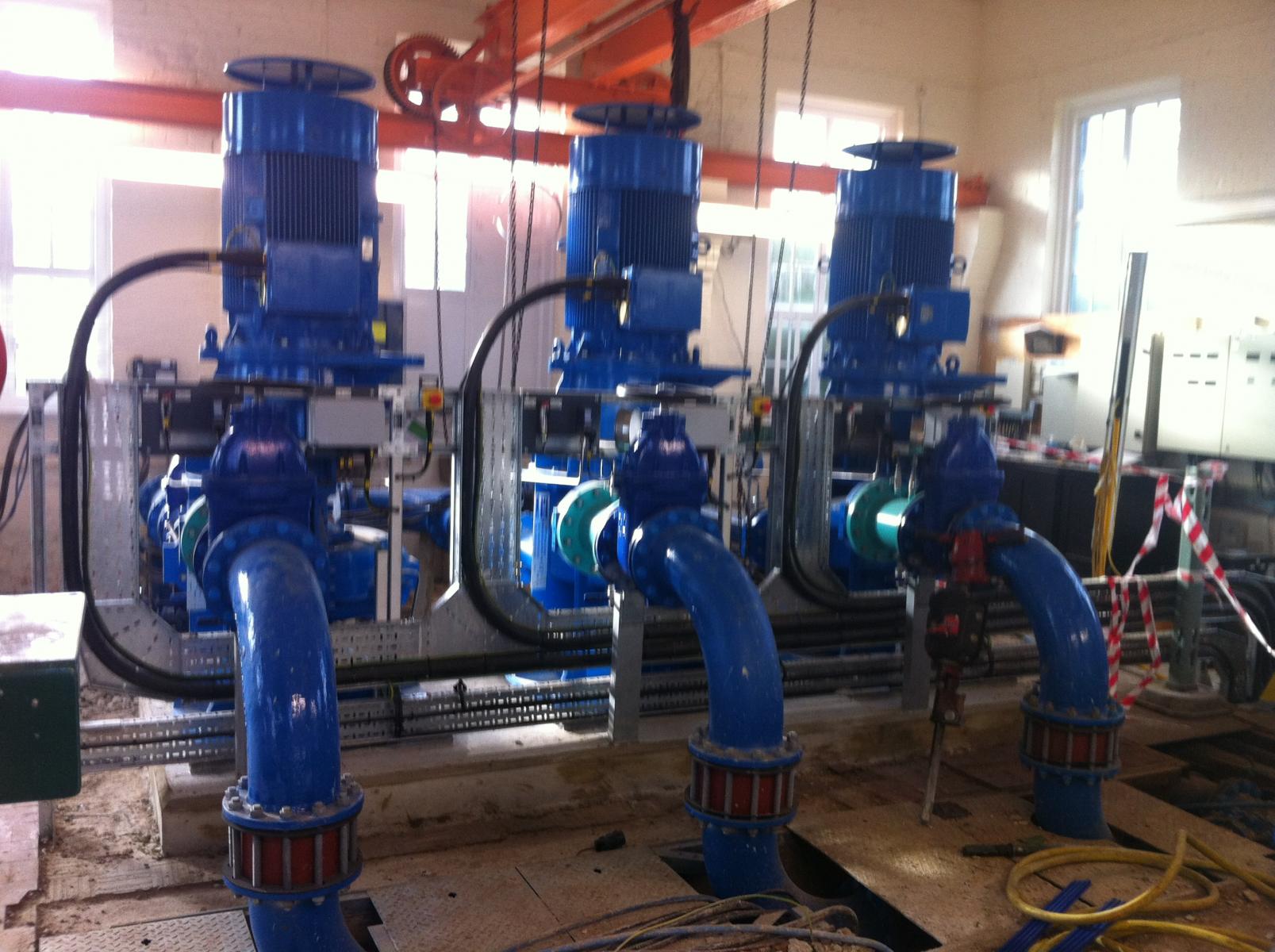

All bends hand made on this job too! Pumps are 160 KW



[johnboy6083]

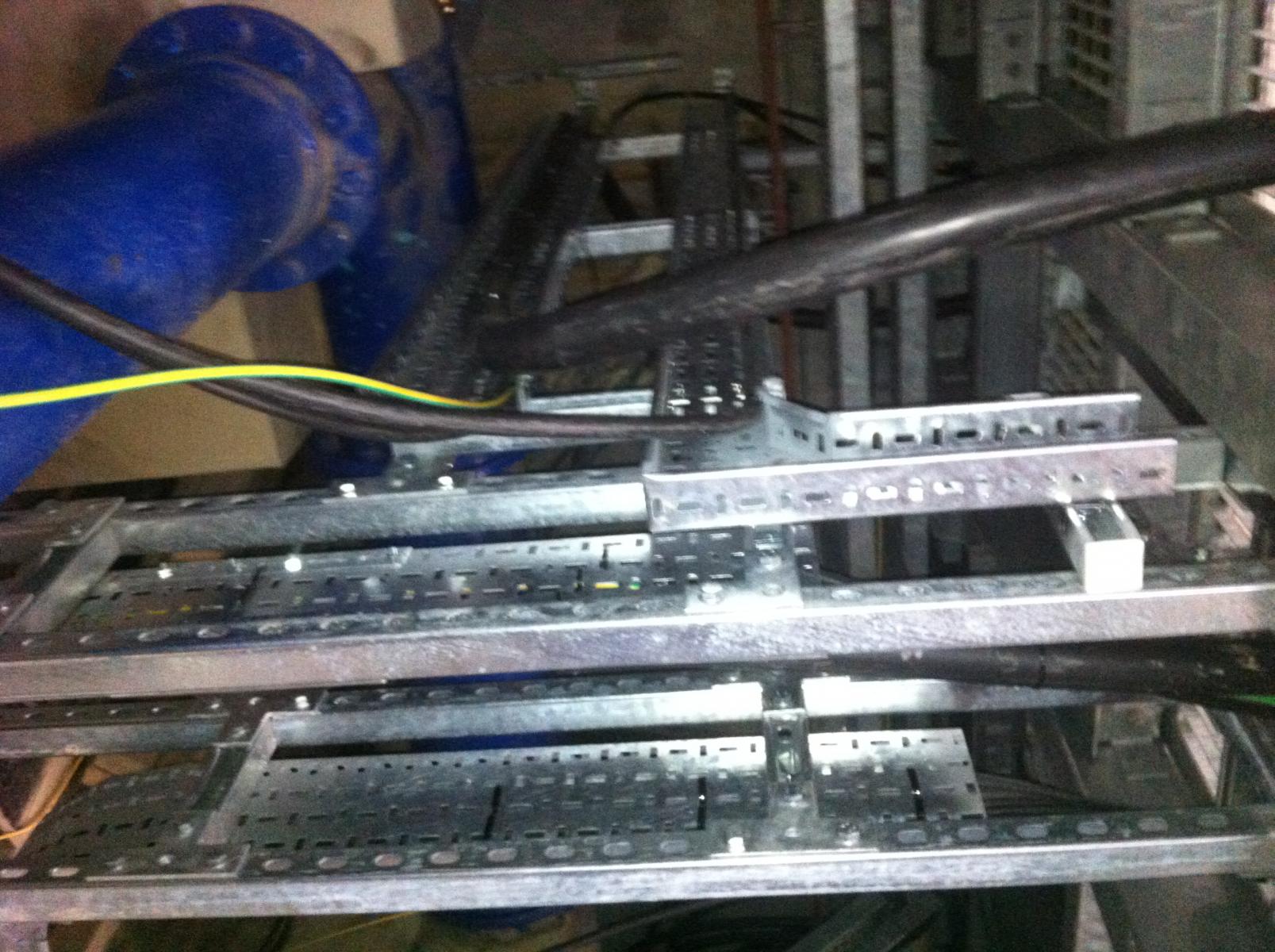

This job was done using pre-manufactured bends. They are not to bad on heavier duty tray, but rubbish on light or medium duty. This was heavy duty tray. The pumps are 100kw.



[Mr.Si]

I remember that from the old thread... I think it's the best tray work i have ever seen!

Simply artwork.

Sent from my Samsung Galaxy S II via Tapatalk



[Richard]

V.Impressive mate. As said, art work!
