**Show Us Your Installs!!!**

[Spudnik]

Right chaps,

Due to a few unavoidable issues, we have lost the original thread and pics etc.

Sorry about that!!!

So, if you want to re-upload your pics then great, if not, give us something new!


Cheers!!



[Marvo]

It controls multiple fan units for bathroom and changing room extraction plus 3 x kitchen canopy hood extraction fans in air handling units with HEPA filters. The VFD's in the silver enclosures are for the 3 kitchen fans.

The picture of me actually working is whilst connecting up a fan in one of the air handling units.



[Rjelectrical]

Plant room of a premier inn down in Glastonbury



[Rjelectrical]

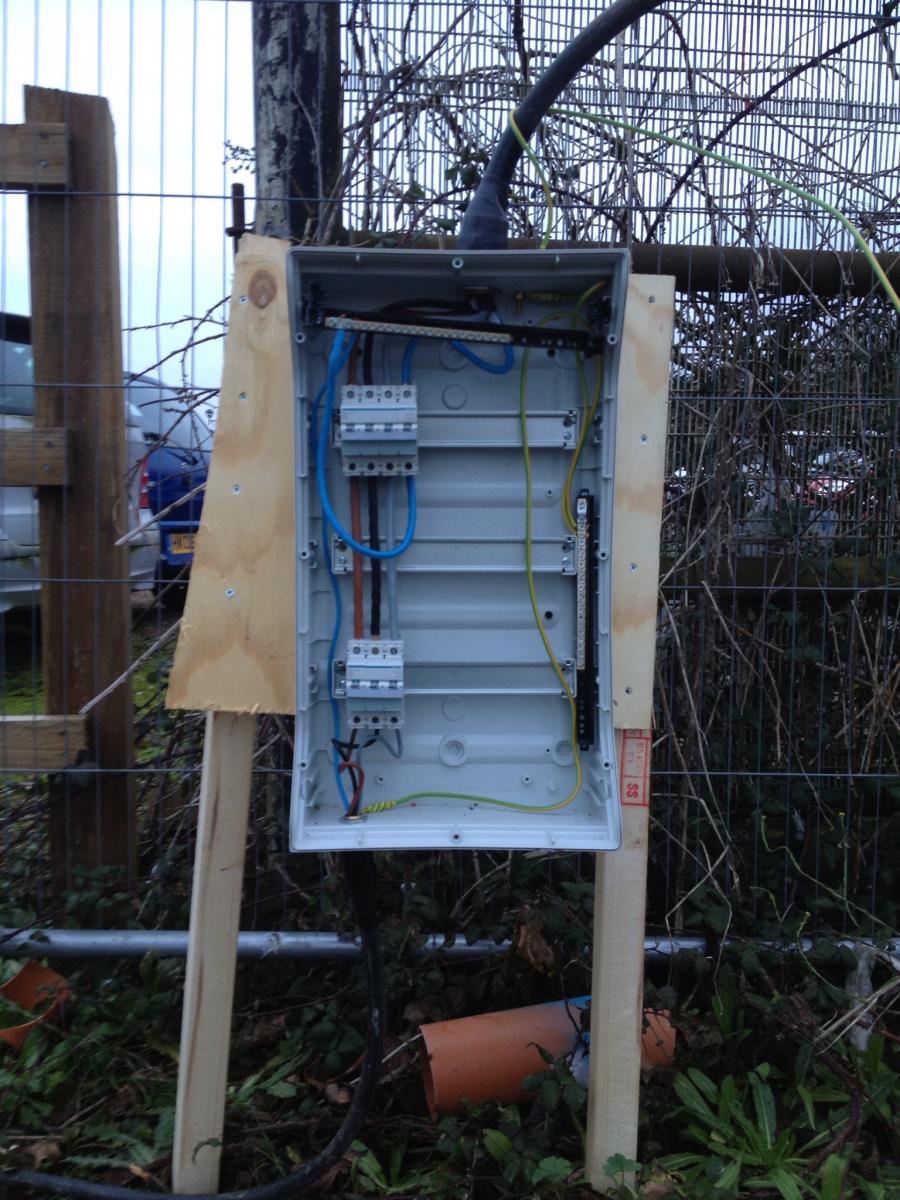

External d/b



[Knobhead]

Why is the DB external?



[Engineer54]

View attachment 19202External d/b

Could have at least cut the back board straight and to size!! lol!! Please don't tell us this is a permanent placement??



[ipf]

Have you powered up yet ? :lipsrsealed2:



[Bobster]

That is dog rough!



[Marvo]

Wow, those two installations are like chalk and cheese. That plant room looks very nice but not sure what happened with that external DB, it certainly isn't going to win any awards...



[daveb1]

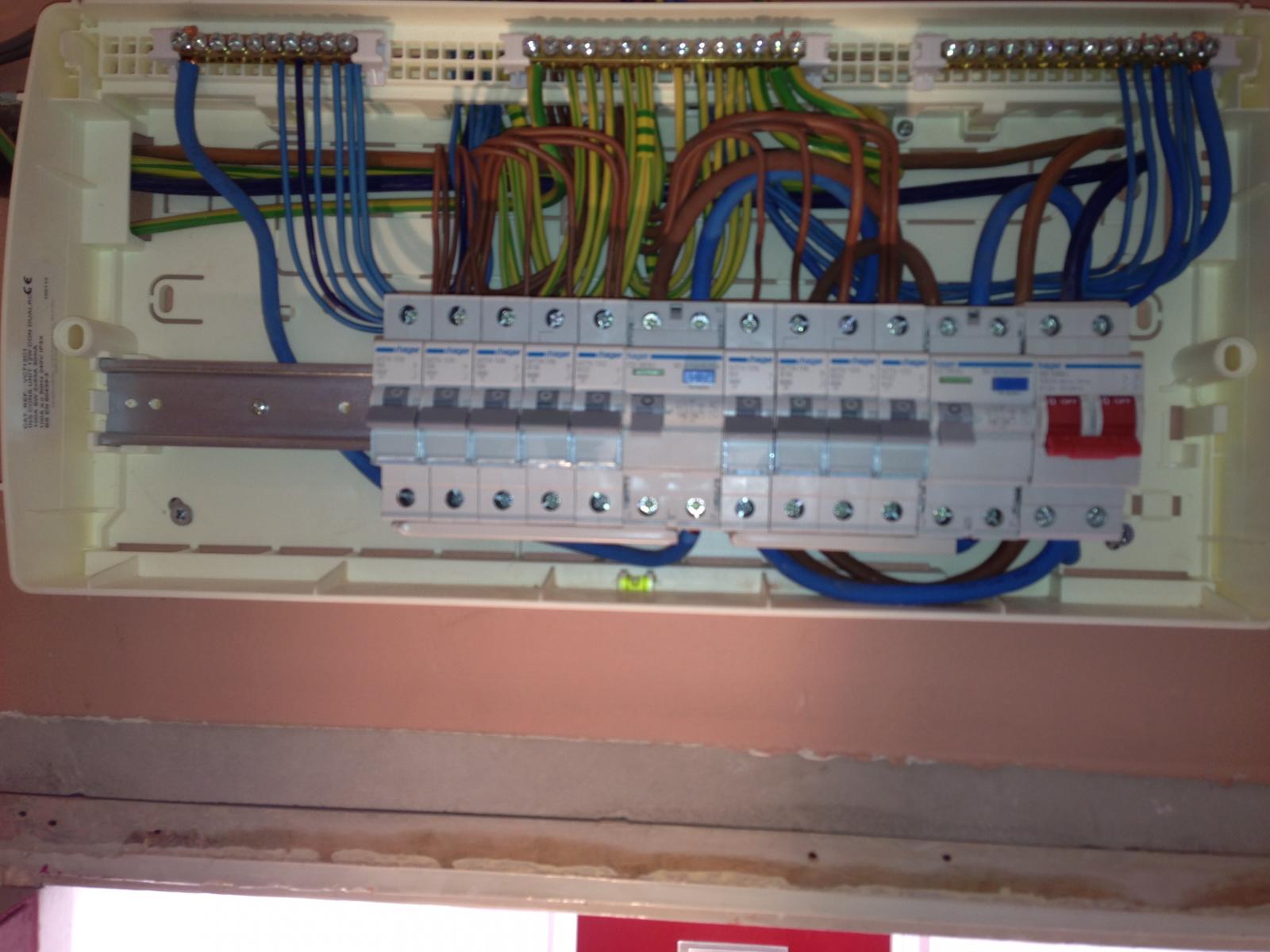

Im new on here so go easy on me couple of CUs i have done in the last few weeks, second pic the builder went an collected the meter tails for me an they were not the best so when i went to strip of 25mm of coloured core it was almost stuck on (guess they were cheap) so i am aware that looks a bit ruff, oh an in the first pic i added the spare fuse covers to the din rail



[Richard Burns]

Im new on here so go easy on me couple of CUs i have done in the last few weeks, second pic the builder went an collected the meter tails for me an they were not the best so when i went to strip of 25mm of coloured core it was almost stuck on (guess they were cheap) so i am aware that looks a bit ruff, oh an in the first pic i added the spare fuse covers to the din rail

Not too bad really, nice and neat and plenty of space.
Not so sure about identifying all the circuits' cables as cpcs with tape.
In general a lot better than many you see.



[Engineer54]

Not too bad really, nice and neat and plenty of space.
Not so sure about identifying all the circuits' cables as cpcs with tape.
In general a lot better than many you see.

Agree, ...it's always nice to see a CU being provide that has plenty of room to dress the conductors neatly to their respective termination points etc!!



[Redvanman]

well if we are showing our CU's.

from this



to this



[Thefailsafe2012]

Orgasmic!



[Knobhead]

well if we are showing our CU's.

from this

View attachment 19216

to this

View attachment 19217

Nice to see a job well done and with skill and pride.
You should be proud of that board.

Sorry to say it’s rare to find these days.



[v.elec]

Most likely a temporary installation.


I hope.
