**Show Us Your Installs!!!**

[Spudnik]

Right chaps,

Due to a few unavoidable issues, we have lost the original thread and pics etc.

Sorry about that!!!

So, if you want to re-upload your pics then great, if not, give us something new!


Cheers!!



[Fin170]

I'm sure somebody will jump in and tell me it looks crap (inb4 heat shrink) but I think it was a good effort with the very limited room for my first 240mm 4 core. Temp supply connected to a 400amp generator, which was huge



[OldeSparky]

I'm sure somebody will jump in and tell me it looks crap (inb4 heat shrink) but I think it was a good effort with the very limited room for my first 240mm 4 core. Temp supply connected to a 400amp generator, which was huge

looks ok to me, also seems small for a 240mm?



[OldeSparky]

heres a few of the installs i done since i finnished my training
theres some decorative work from a regular customer of the company i do work for aswell as another (solar firm) mostly solar there but thats all i did for 18 months and was a very busy 18 month most the time it was 7days a week all day and over time
View attachment 22357 View attachment 22358 View attachment 22359

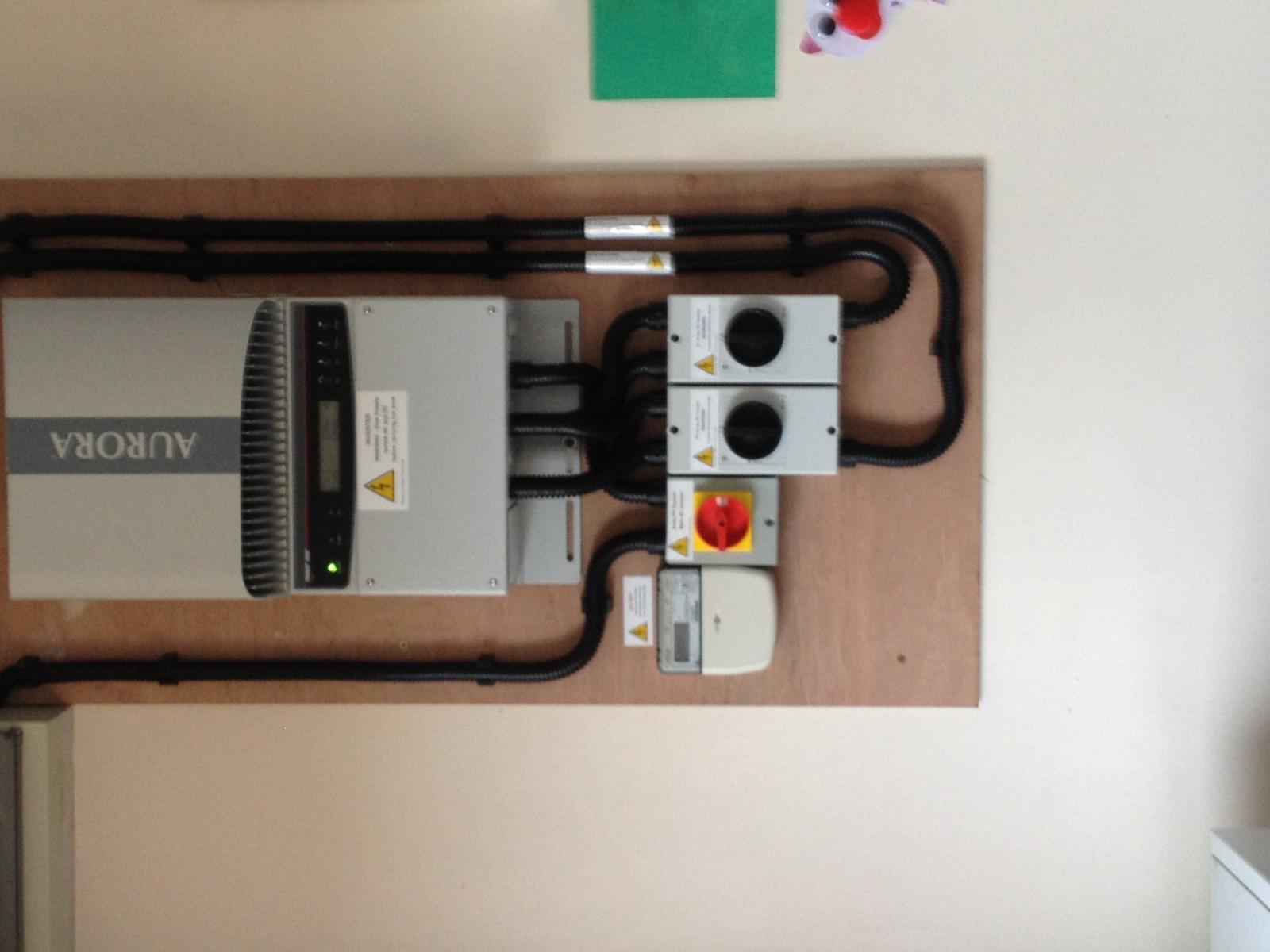

each install below took 2-2.5 days with the odd 3 days to all put together

View attachment 22356

View attachment 22360 View attachment 22361 View attachment 22362

View attachment 22363

View attachment 22364

View attachment 22365 View attachment 22366

i hope that hot tub is TT....



[davesparks]

How can you judge the size of the cable with no scaled point of reference?

It looks like a neat job to me, it certainly shows up the naff job the generator builders have done!

Which bunch of monkeys built that particularly badly laid out generator?



[OldeSparky]

View attachment 24540View attachment 24541View attachment 24542

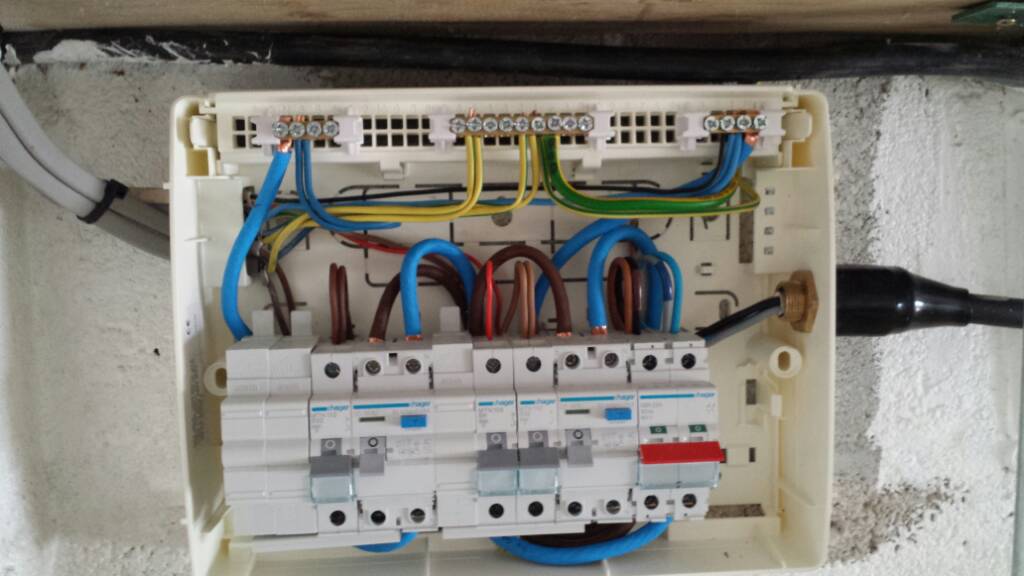

A few DB's ive done recently.
6way is a garage I TT'd with pme supply and existing cable was 4 core so used 2 cores In parallel.

sorry dont like the way you have stripped the tails,, in fact it gets under my skin, should have a short bit of the inner cores showing..



[davesparks]

He has got a bit of the core showing, the copper core that is

/sarcasm



[guest119]

Rough job that, lot of copper showing there.

Boydy



[Fin170]

Which bunch of monkeys built that particularly badly laid out generator?

Cummings power generation did the lot I think, engine itself is something like 9 litres

looks ok to me, also seems small for a 240mm?

It certainly was, took 3 guys to lift, angle and persuade it into the thing :smilewinkgrin:

Rough job that, lot of copper showing there.

Given the buzz bars are right next to it, it's more ascetics than anything at the end of the day :leaving:



[guest119]

No Fin, wasnt talking about your grand job, the consumer unit in the link post 1085.
Sorry for the confusion.

Boydy



[Knobhead]

Cummings power generation did the lot I think, engine itself is something like 9 litres







Given the buzz bars are right next to it, it's more ascetics than anything at the end of the day :leaving:

They’re only buzz bars if you touch the while they are live, most of the time they’re busbars.

I will agree with Dave, the panel is crap. The N→E link looks dodgy to say the least.



[Aindowsimon]

Wana c a dodgy N to E link ??saw this today

Ad least you can isolate the main earth ,



[davesparks]

And the bellwire in the MCB?



[uksparks]

I don't like that, diy TNCS is it? Paint on the earth... And why the hell is the earth through the isolator?



[Aindowsimon]

Obviously but the main earth is wot I was mainly drawing attention to
I'm currently seeing something ridiculous every day like a installation with no earth at all all In the same small village . God knows wots gone on



[specs]

I was going to reply to this, but I see it all the time. If anyone wants to see rubbish installs visit London.
