It is often said on here we criticise others work without having the conviction to show our own work. We have Dodgy Trade Pics For Your Enjoyment so let's show the other side. No job too small or to big, before or after let's see 'em. I can change the header if someone can think of a better one. I shall start the ball rolling with this considerable board change I did today



[AJshep]

Haha, it does look pretty creepy
My mate said I looked like that girl from the film (The Ring) as i was trying to get out the hole.
Cant upload a vid so a gif will have to do.



[telectrix]

i'd have got stuck in a hole that size, fire brigade would have to free me.



[happysteve]

Trainee question & probably a silly question but can you explain by any chance what is happening there with the Wago connectors? not sure I have seen that method before in a CU.

The T&E going out the bottom will be a switch drop. The red-sleeved black conductor is the switched live. The Wago links this to the (red conductor of the) T&E going up from the top of the DB, to the light.



[Dave OCD]

Trainee question & probably a silly question but can you explain by any chance what is happening there with the Wago connectors? not sure I have seen that method before in a CU.

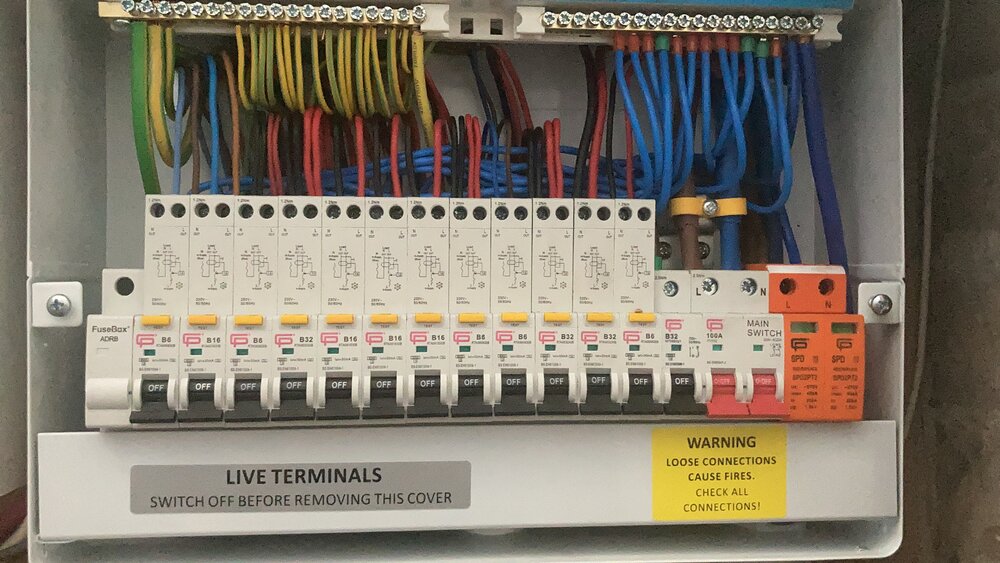

Certainly mate, because the CU was in a position almost central between the 2 x 2 way light switches I ran a 3 core and cpc to each switch back to the CU and the same with the T&E looping to the 4 lights. So at the board you connect one 2 way common to the MCB, the other common to the lights line conductor then the 2 x 'L1s' and 'L2s' simply connect together in the CU , it's an old method often used with junction boxes - I hope it makes sense !



[JAWS]

Thank You for that Dave appreciate it.



[Andy78]

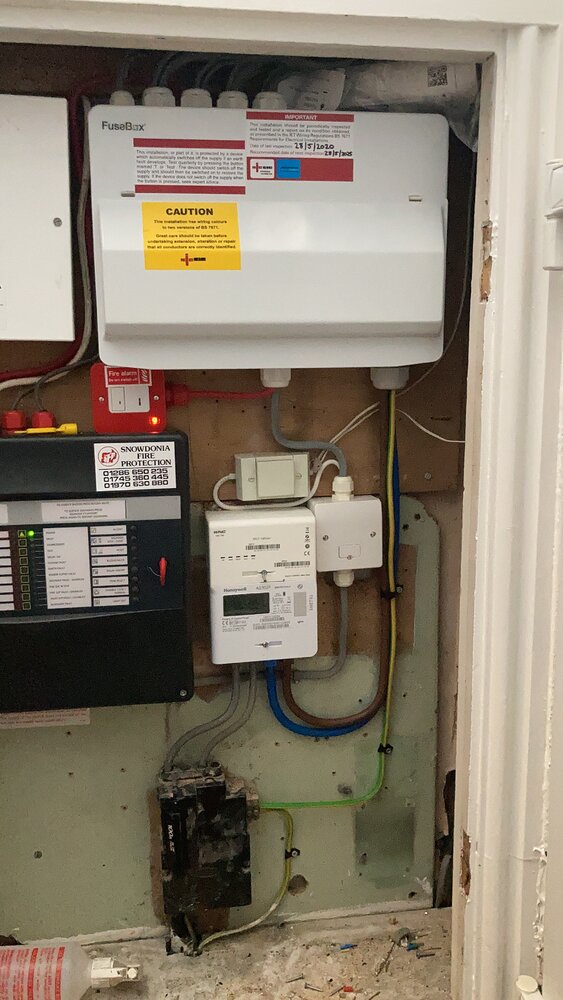

Final connections on a rewire completed this week, after many months of a long, drawn out, total house refurb.



[James]

Final connections on a rewire completed this week, after many months of a long, drawn out, total house refurb.
View attachment 50854View attachment 50855

you've done this before haven't you?



[Andy78]

you've done this before haven't you?

First one ever !

I really like using the 100x50 trunking. Makes a neat job and easy to add a light switch/alarm FCU/socket etc.



[westward10]

Before, during and afters including some fault finding.



[westward10]

This should be after and before, all jumbled up and some duplicates.



[The Ghost]

Shipping container being used as small catering concern at the docks in Bristol. The other pic is the supply in the access aisle behind the unit.

And the other end of the unit.



[Andy78]

Shipping container being used as small catering concern at the docks in Bristol. The other pic is the supply in the access aisle behind the unit.

That's a posh container. I take it they're loving the conduit theme. Bonding nipples are good for flex retention out of spout lids I have found.



[westward10]

No wonder there is a shortage of distance saddles



[westward10]

Trying again.



[The Ghost]

I take it they're loving the conduit theme

It is part of what they call Cargo a conglomeration of containers in Bristol docks and most of the units wanted this look for the industrial connotations. It did give me a wry smile when some younger sparks started in a three container concern in galv. and could not complete it as they just could not do it. i.e. they could not feed their wires due to using 90 degree bends and trying to pull too many wires in instead of bending all their corners, so they advised the client they would have to do it in plastic conduit instead.
